Insert Molding Services
Produce sturdy and high-quality prototypes and production parts through custom insert molding services.Upload a part to get an online quote.
- All uploads are secure and confidential
Certifications
ISO 9001:2015 | ISO 13485：2016 | IATF16949
What is Insert Molding?
Insert molding is an injection molding process where one or multiple pre-made inserts or metal components are placed into a mold and plastic material is injected around them during the molding process. This technique integrates inserts or metal parts directly into plastic components, creating a unified single-piece part by combining plastic with other materials.
Inserts typically consist of metal, plastic, or other materials. They are placed into the injection mold, and molten plastic is injected around these inserts, securing them within the final plastic part. This process allows the integration of inserts with plastic through methods such as mechanical bonding, chemical adhesion, or fusion between melted plastic and the insert’s surface.
BOONA Insert Molding Capabilities
Insert molding can improve the manufacturing feasibility of parts, shorten delivery time, and improve the appearance of parts.For a free insert molding design review and quote, upload your CAD files here.
| Standards | Metric units | Imperial units |
|---|---|---|
Maximum Part Size | 600×1000×300mm | 23.62×39.37×11.81 in. |
Minimum Part Size | 2×4×4 mm | 0.08×0.16×0.16 in. |
Tolerance | ±0.025 mm | ±0.001 in. |
Inserts | Inserts can be female and male. They both can improve a product’s appearance and utility. | |
Standard Lead Time | From mold making to sample delivery: 15-45 business days | |
Materials for Insert Molding
We offer hundreds of materials that can help you produce insert molding parts for various industry applications. The materials commonly used include but are not limited to:
- Steel
- Aluminum
- Copper
- Magnesium alloy
- Iron
- Nickel alloy
- Zinc alloy
- Nylon
- POM
- PVC
- Polyethylene
- NBR
- Polypropylene
- Polycarbonate
- Ceramic
- Glass fiber
- Carbon fiber
- Silicone
- Polyester resin
- Polyurethane
- Rubber materials
- We provide a quotation of 100+materials so that you can better compare and choose suitable materials.

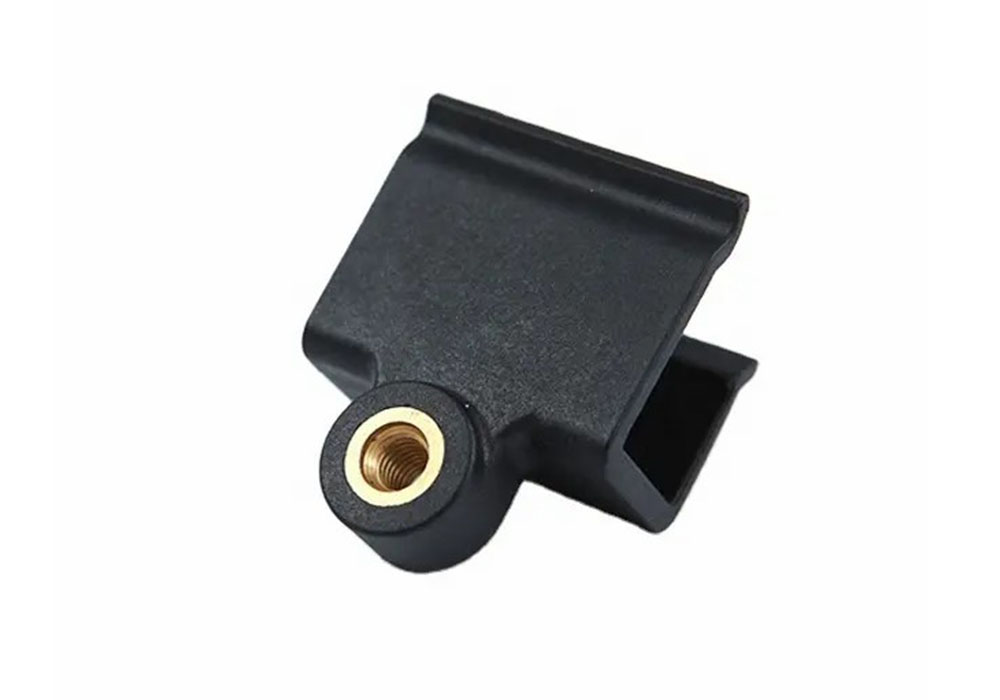

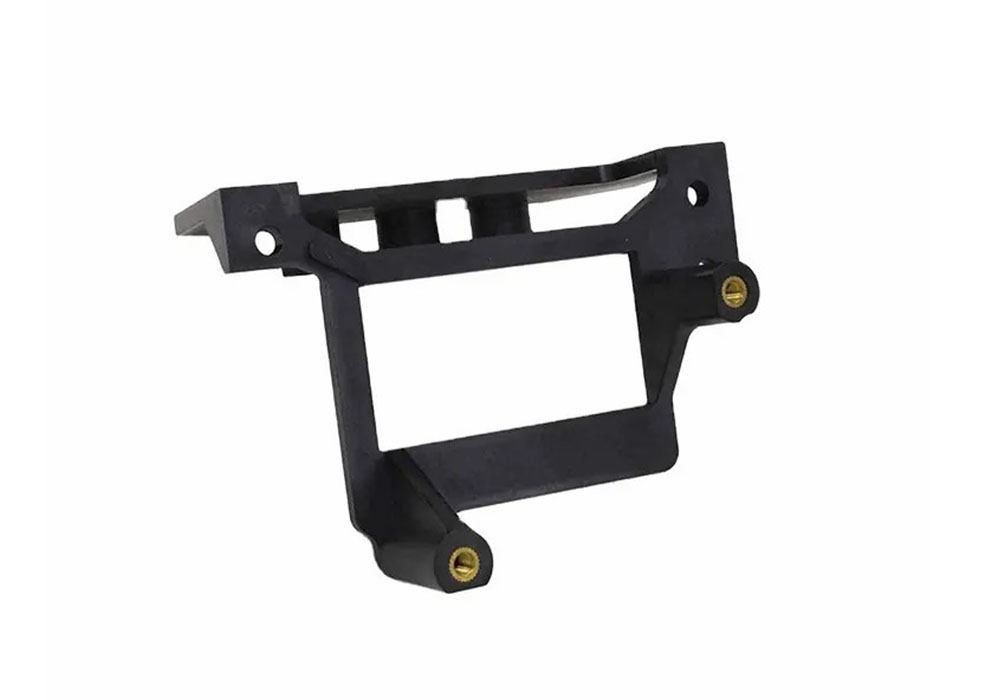

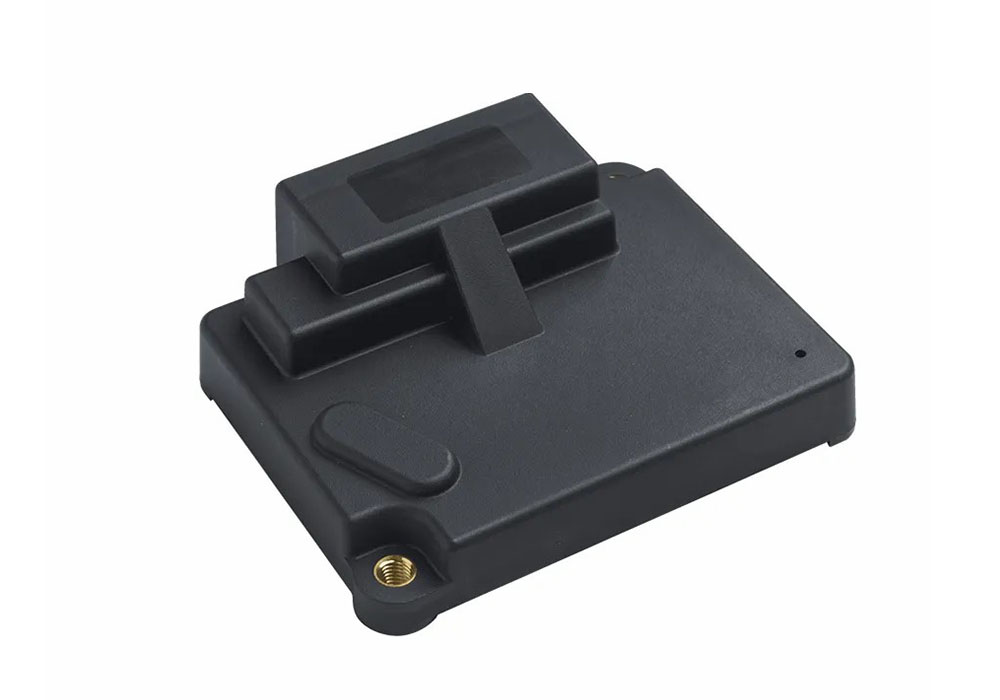

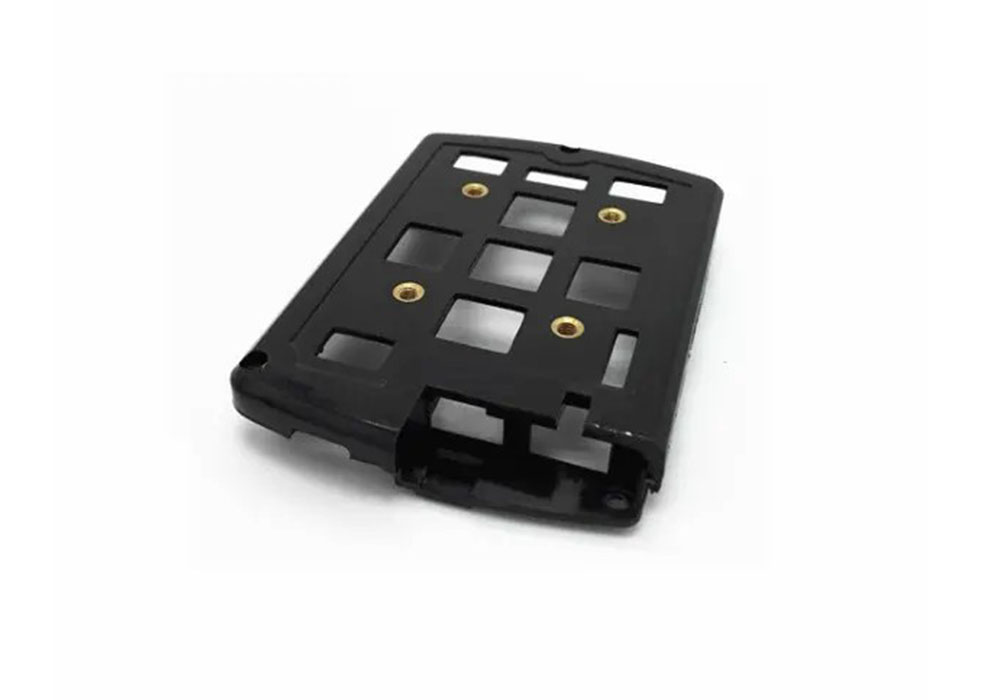

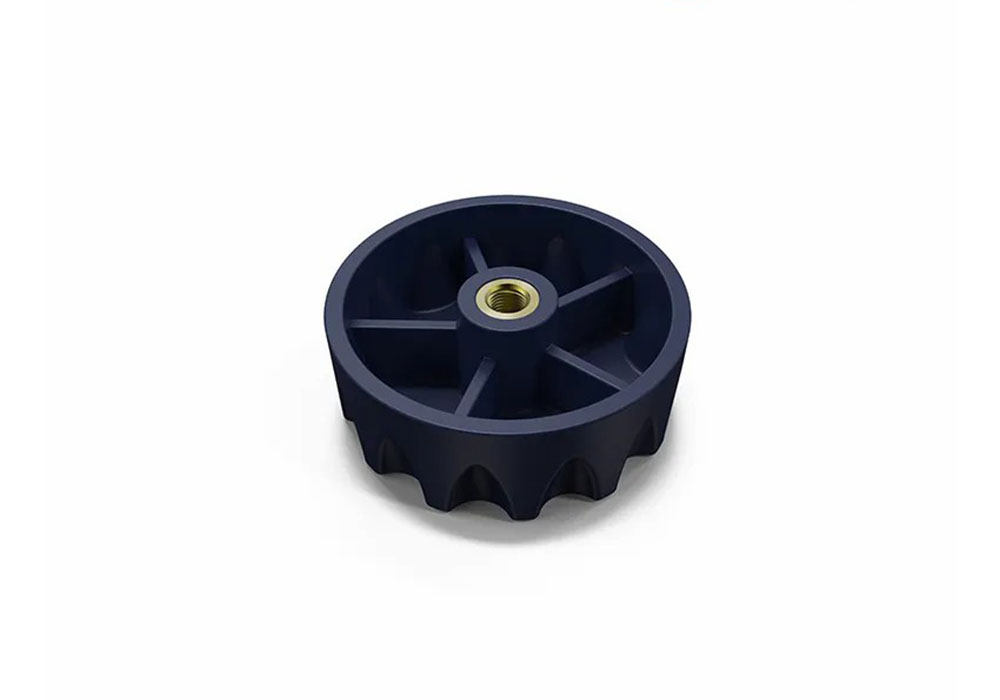

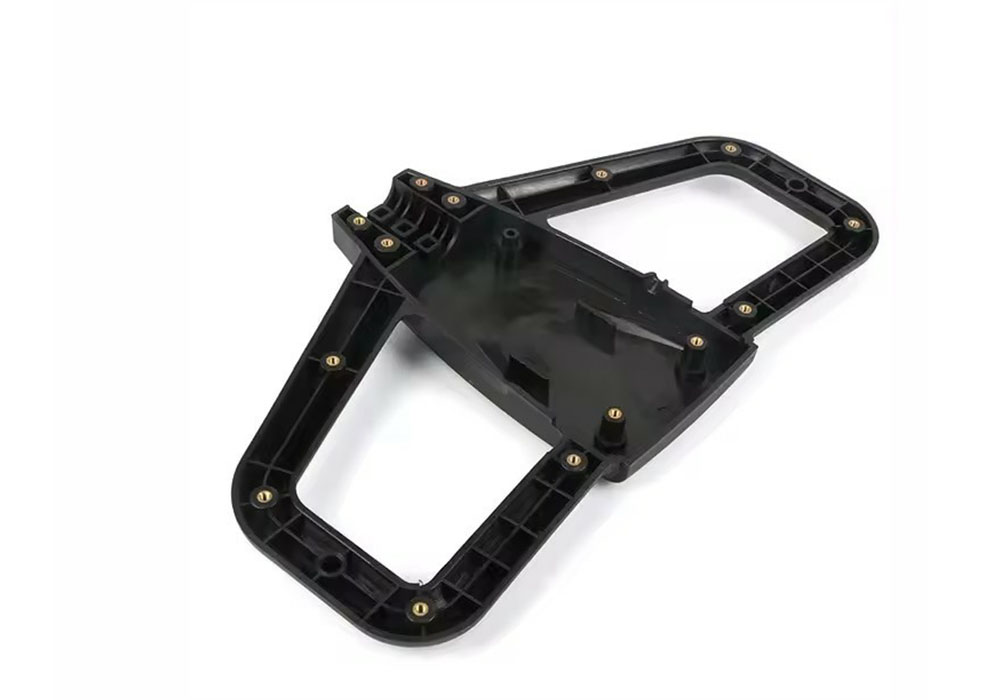

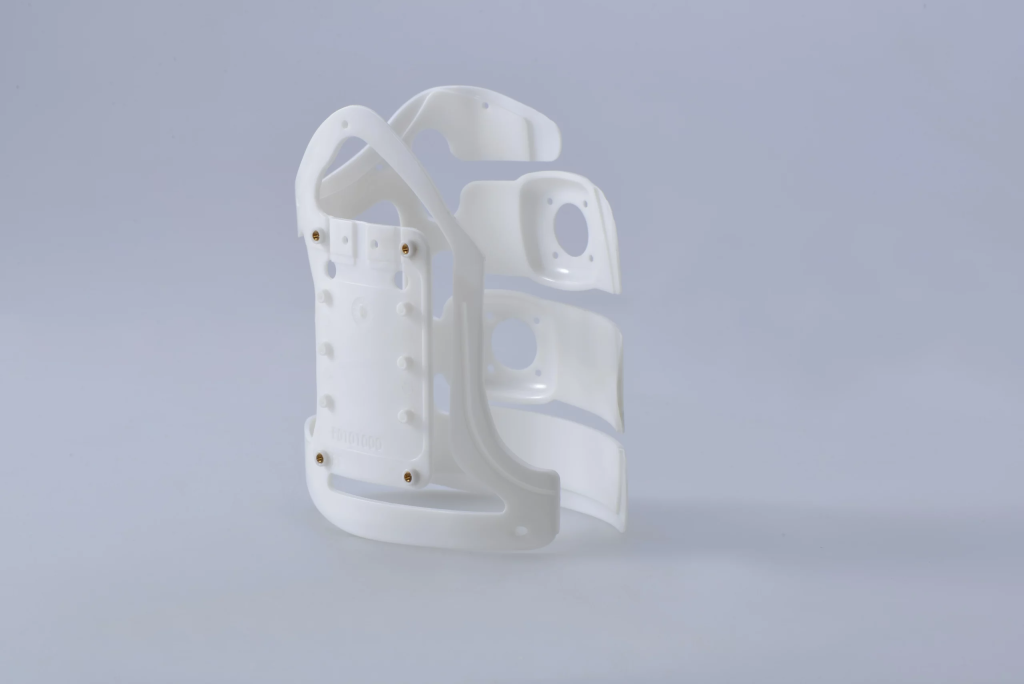

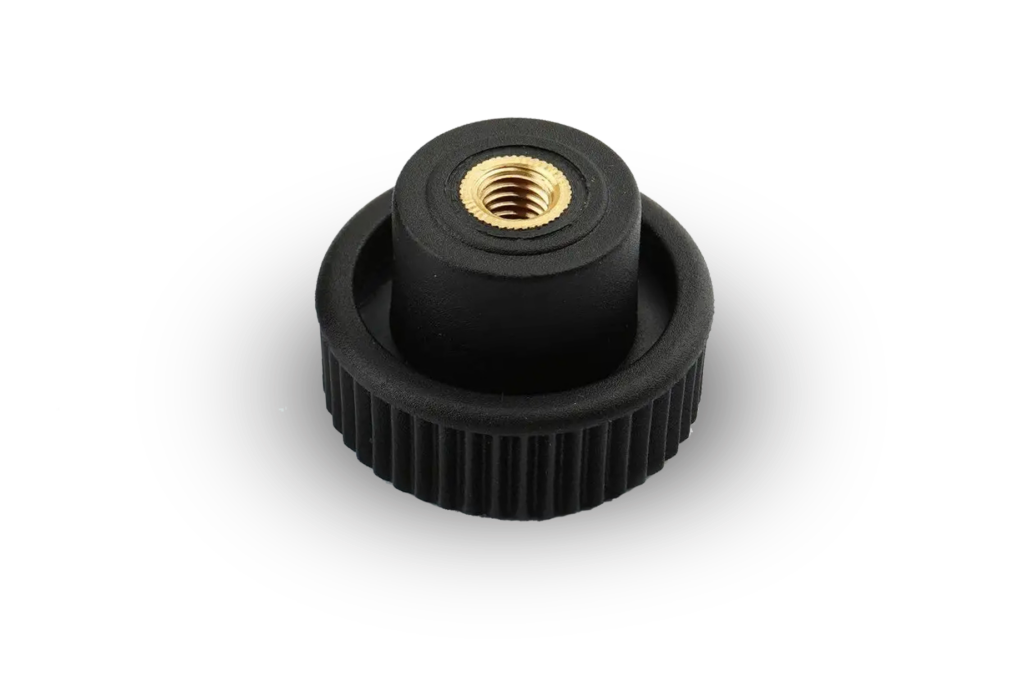

Gallery of Insert Molding Parts
