Nylon CNC Machining Services
With its versatility, nylon (PA) CNC machining is perfect for producing both prototypes and end-use parts with superior strength and dimensional accuracy.
- All uploads are secure and confidential
Certifications
ISO 9001:2015 | ISO 13485：2016 | IATF16949

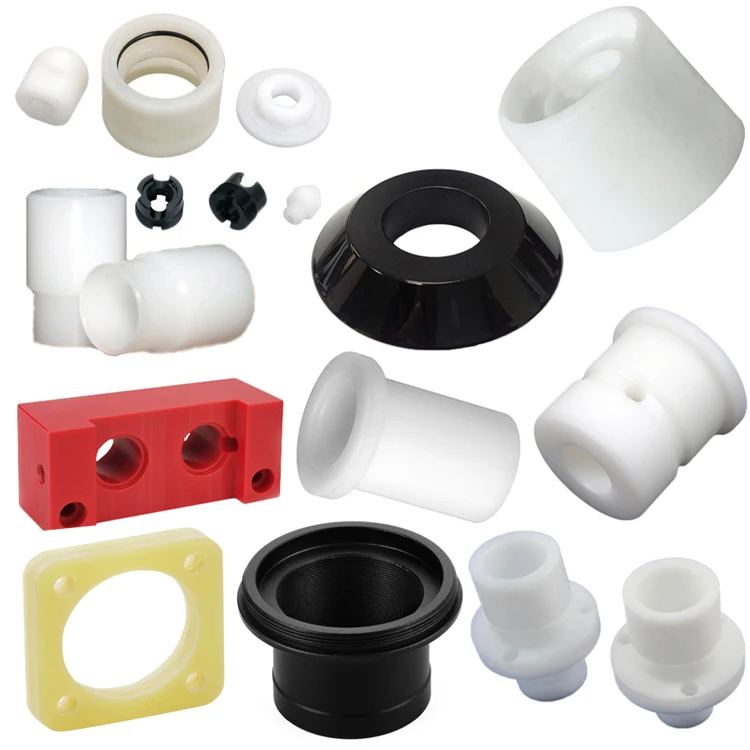

CNC Machining in Nylon
CNC machining in nylon delivers strong, lightweight, and wear-resistant parts with excellent precision. BOONA, a leading CNC machining provider in China, offers precision parts with advanced 3-axis, 4-axis, and 5-axis machines. With hundreds of CNC machines, we deliver high-quality custom solutions for various industries.
| Standards | Detail |
|---|---|
Processes | CNC milling, CNC turning |
Maximum Part Size | 4000 mm×1500 mm×600 mm |
Tolerances | +/- 0.01 mm |
Lead Time | 3 business days |
Wall Thickness | 0.8 mm |
Surface Finishing Options | As machined, sand blasted, painted, or powder coated |
Price | $$$ |
Pros and Cons | CNC machining is precise and durable but has more geometry limits than 3D printing. |
Nylon CNC Machining Materials
Nylon, developed in the 1930s as a silk alternative, is softness makes it ideal for machining with HSS or carbide tools. BOYI offers nylon materials with unique properties, ideal for various projects.

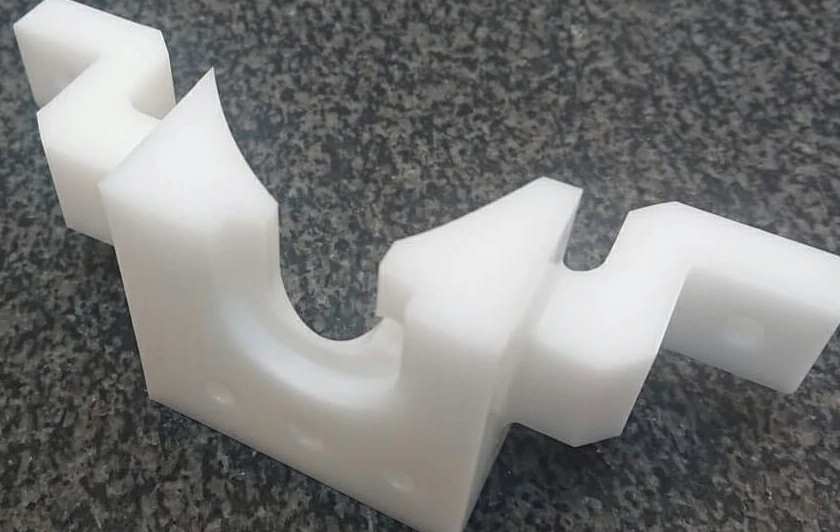

Nylon 6
Nylon 6 is durable, wear-resistant, and strong, with low friction, good impact resistance, thermal stability, and moisture absorption. Ultimate Tensile Strength: 64.7 – 79.1 MPa Yield Strength: 51.2 – 63.8 MPa Young’s Modulus: 1.58 – 1.97 GPa Elongation at Break: 200-300% Hardness: 16.4-18.1 HV Maximum Service Temperature: 90 – 130°C

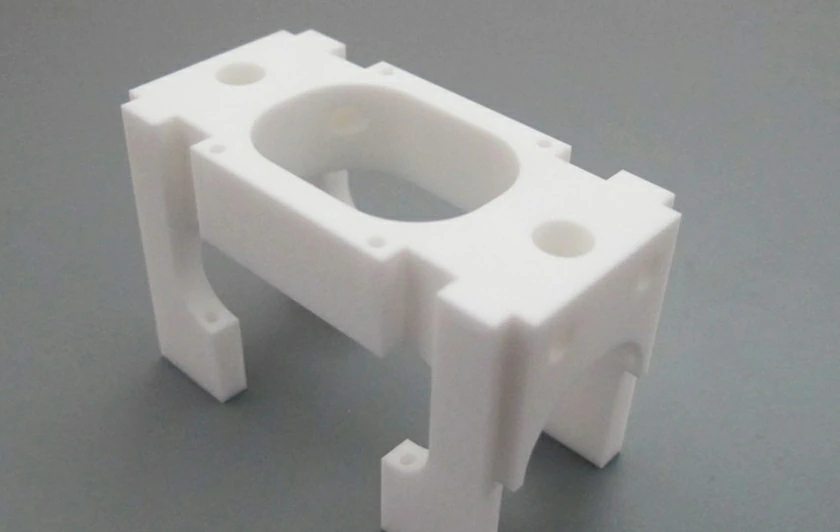

Nylon 6 30% Glass Filled
Nylon 6 30% glass filled is a reinforced version of Nylon 6, offering improved strength, stiffness, and dimensional stability. Ultimate Tensile Strength: 113 – 138.1 MPa Yield Strength: 111 – 137 MPa Young’s Modulus: 6.5 – 8.1 GPa Elongation at Break: 2.81 – 4.05% Hardness: 35.6 – 39.4 HV Maximum Service Temperature: 90 – 131°C

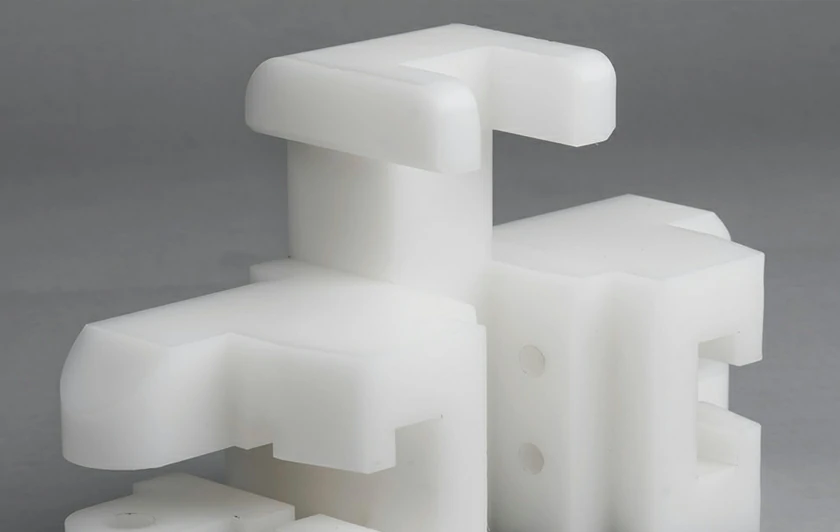

Nylon 6/6
Nylon 6/6 (PA 66) is a crystalline version of nylon 6, offering better mechanical properties, temperature resistance, and lower water absorption. Ultimate Tensile Strength: 80-110 MPa Yield Strength: 70-100 MPa Young’s Modulus: 3-4 GPa Elongation at Break: 5-50% Max Service Temp: 150-250°C Thermal Expansion: 50 x 10^-6/°C
Nylon 6/6 30% Glass Filled Natural
The combination of advanced equipment and exquisite craftsmanship enables precise milling of complex shapes of aluminum materials, whether it is flat, curved, or various irregular structures, achieving extremely high precision standards and outstanding processing efficiency, effectively shortening delivery cycles.

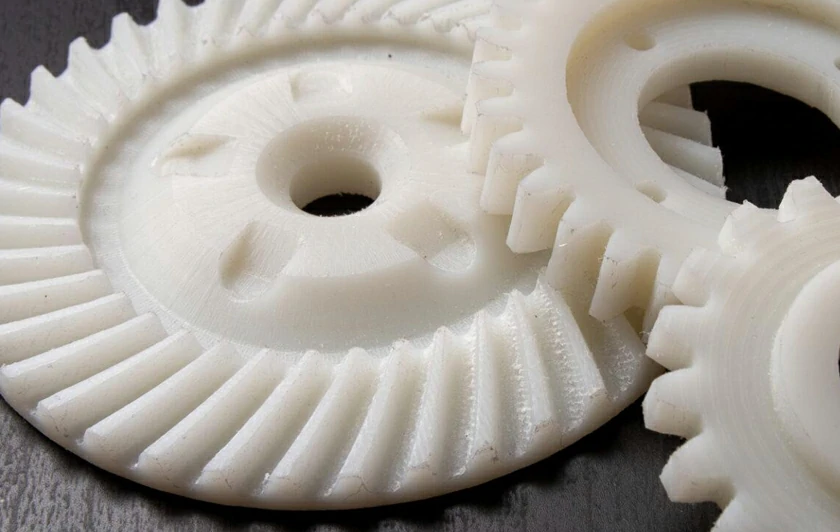

Nylon 12
Nylon 12 is a multifunctional lightweight material with characteristics such as low moisture absorption, excellent chemical resistance, high flexibility, and impact strength. Ultimate Tensile Strength: 45-60 MPa Elongation at Break: 200-400% Hardness (Shore D): 60-75 Heat Deflection Temperature: 85-120°C Melting Point: 178-180°C

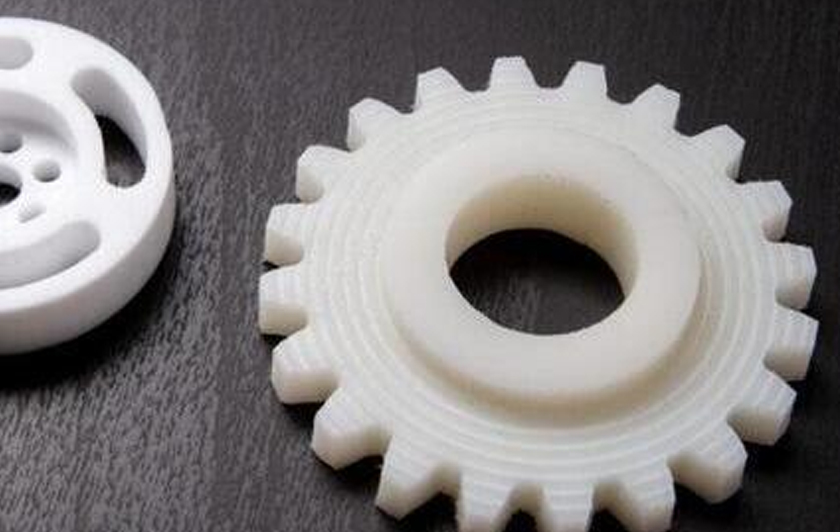

Nylon 11
Nylon 11 has low moisture absorption, excellent chemical resistance, high flexibility, and high impact strength. It is an ideal choice for demanding industrial and automotive applications. Ultimate Tensile Strength: 50-70 MPa Elongation at Break: 200-400% Hardness (Shore D): 60-75 Heat Deflection Temperature: 85-120°C Melting Point: 180-185°C

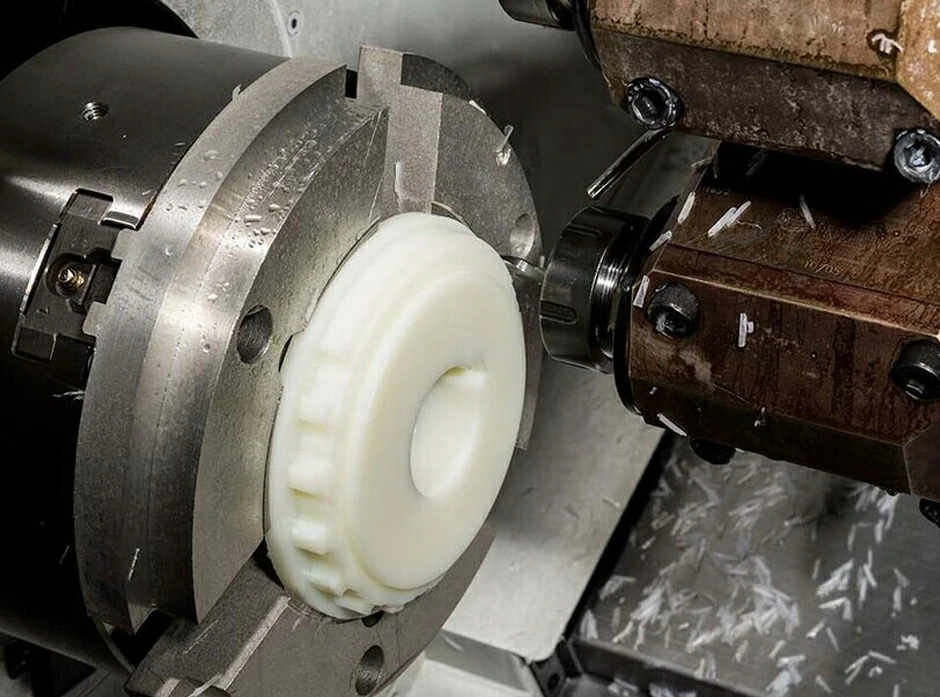

What is Nylon?
Nylon is a synthetic polymer belonging to the family of polyamides. It was first developed in the 1930s and has since become one of the most widely used materials in various industries.
Nylon is made from petrochemical products through a polymerization process and can be reinforced with materials like glass fibers to enhance its properties. It has excellent wear resistance, high tensile strength, and good chemical resistance, making it suitable for demanding applications. In addition, nylon can be easily machined into complex shapes and tight tolerances, making it ideal for CNC machining processes.
Nylon Machining Application
Some common applications of nylon machining include:
- Gears
- Bushings
- Bearings
- Pulley wheels
- Wear pads
- Electrical insulation components
- Machine components
- Surgical tools
- Implants
- Textile machine components
- Tubing
- Hoses
- Fittings
- Handles
- Casings
Benefits of Nylon Machining
Nylon machining allows for precise, high-quality parts. The key benefits include:
- High strength for load-bearing applications.
- Durable with resistance to wear and abrasion.
- Lightweight, reducing component weight.
- Good chemical resistance against oils and fuels.
- Low friction, ideal for moving parts.
- Moisture resistance, maintaining stability in humid conditions.
- Versatile, easily machined into complex shapes.
- High impact resistance for demanding environments.
- Good electrical insulation properties.
- Cost-effective and easy to process.
