PEEK CNC Machining Services
No MOQ, obtain PEEK (polyetheretherketone) parts within a few days, and certified materials. Get a free quote today!
- All uploads are secure and confidential
Certifications
ISO 9001:2015 | ISO 13485：2016 | IATF16949

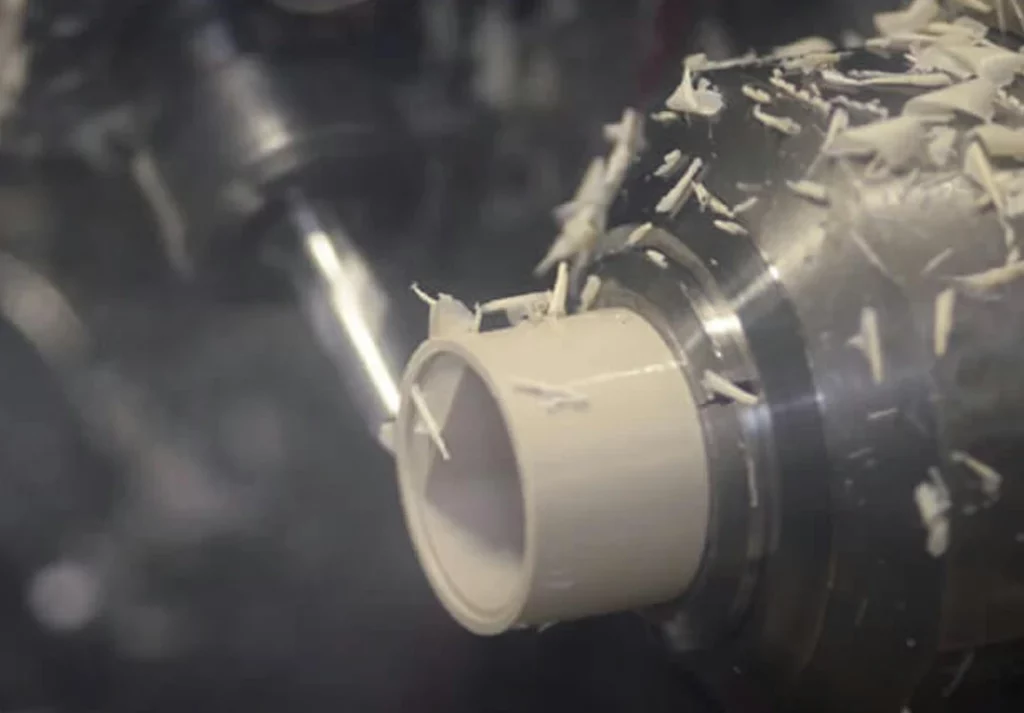

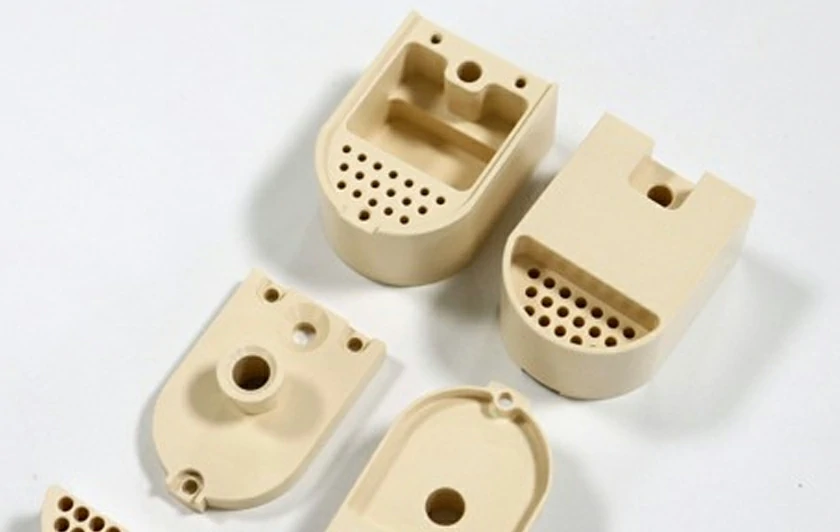

Custom PEEK CNC Machining
Custom PEEK CNC Machining services provide precision-engineered PEEK (Polyetheretherketone) parts for demanding applications. With excellent mechanical strength, chemical resistance, and heat tolerance, PEEK is ideal for aerospace, medical, and industrial use.
| Standards | Details |
|---|---|
Tolerances | ±0.01 mm |
Maximum Part Size | 4000 mm×1500 mm×600 mm |
Wall Thickness | 0.75 mm |
Price | $$$ |
Lead Time | 3 business days |
Processes | CNC Mill, CNC Lathe |
PEEK CNC Machining Material
PEEK’s ability to maintain its structural integrity under extreme conditions makes it an ideal choice for precision CNC machining. Whether creating complex geometries or meeting stringent industry standards, PEEK ensures reliable performance and durability in challenging environments. Here are several common peek materials we provide.

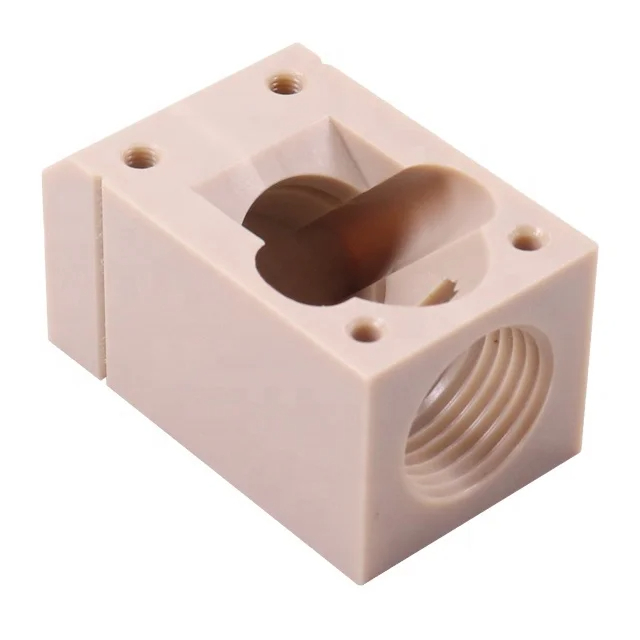

Generic PEEK
PEEK is a high-performance plastic with excellent heat resistance, hydrophobic properties, and minimal outgassing, making it ideal for medical and aerospace applications. Tensile Strength (MPa): 65-120 Elongation at Break (%): 1.5-110 Hardness (Shore D): 62-89 Heat Deflection Temp (°C): 182-210 Glass Transition Temperature (°C): 143-155
USP Class VI PEEK (TECAPEEK)
Medical-grade PEEK offers high chemical resistance, excellent sterilization durability, and biocompatibility, making it ideal for medical devices and temporary implants. Tensile Strength, Yield (MPa): 96.5-110 Elongation at Break (%): 30-50 Hardness (Rockwell M): 94-99 Heat Deflection Temperature (°C): 160 Glass Transition Temperature (°C): 150

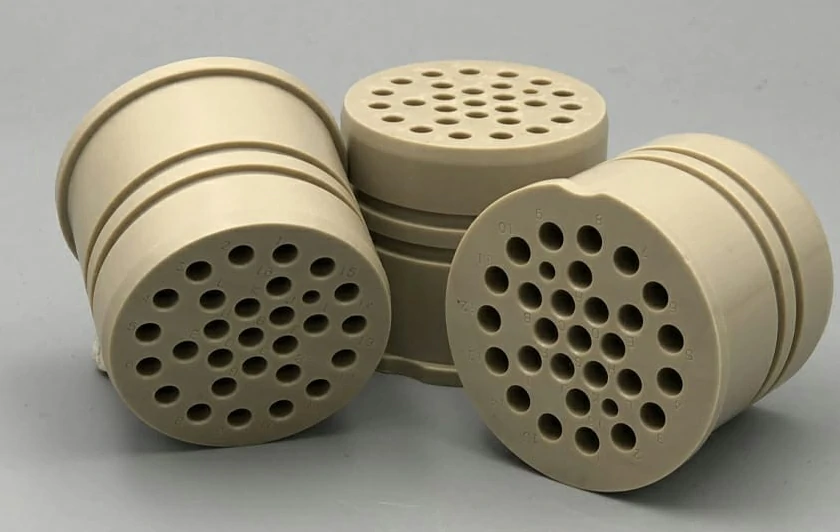

PEEK GF30
PEEK GF30 is a 30% glass-filled variant, offering superior rigidity, mechanical strength, and dimensional stability, ideal for high-load, high-temperature applications. Tensile Strength, Yield (MPa): 101-157 Elongation at Break (%): 2.2-5 Hardness (Rockwell M): 103 Heat Deflection Temperature (°C): 316 Maximum Service Temperature (°C): 260-300

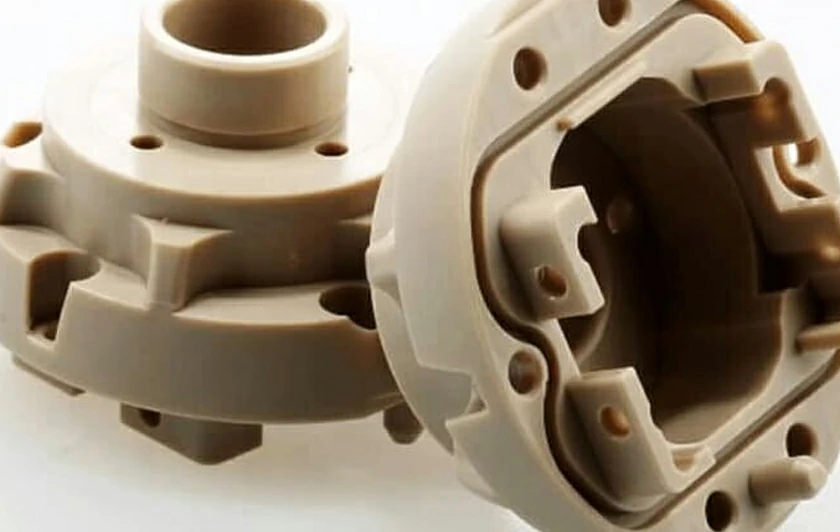

PEEK-CA30
PEEK-CA30 is a carbon fiber reinforced PEEK, offering enhanced strength, stiffness, and dimensional stability, ideal for high-performance applications in aerospace, automotive, and industrial sectors. Tensile Strength (MPa): 120-200 Elongation at Break (%): 2-5 Hardness (Rockwell M): 98-105 Heat Deflection Temp (°C): 290-310 Max Service Temp (°C): 260-300

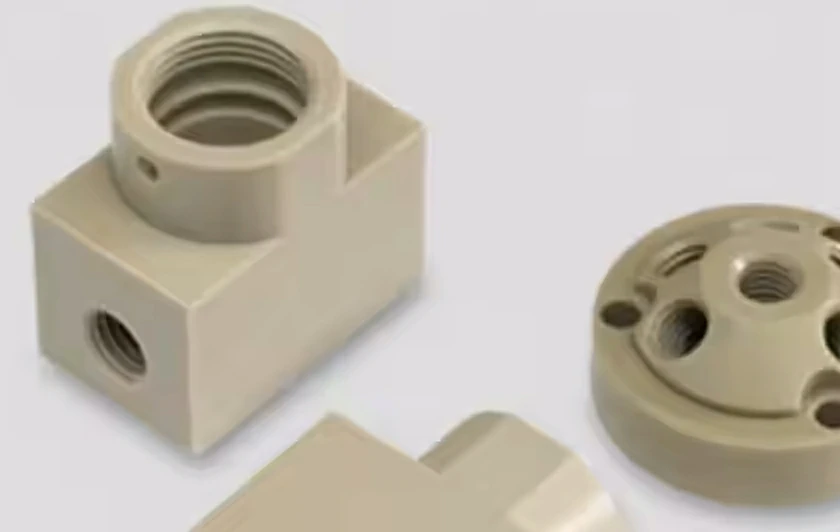

PEEK-HPV
PEEK-HPV is a high-performance variant of PEEK, designed for improved wear resistance and low friction, ideal for bearings, seals, and wear-resistant parts in automotive and aerospace. Tensile Strength (MPa): 90-150 Elongation at Break (%): 2-5 Hardness (Rockwell M): 100-110 Heat Deflection Temp (°C): 250-270 Max Service Temp (°C): 250-280

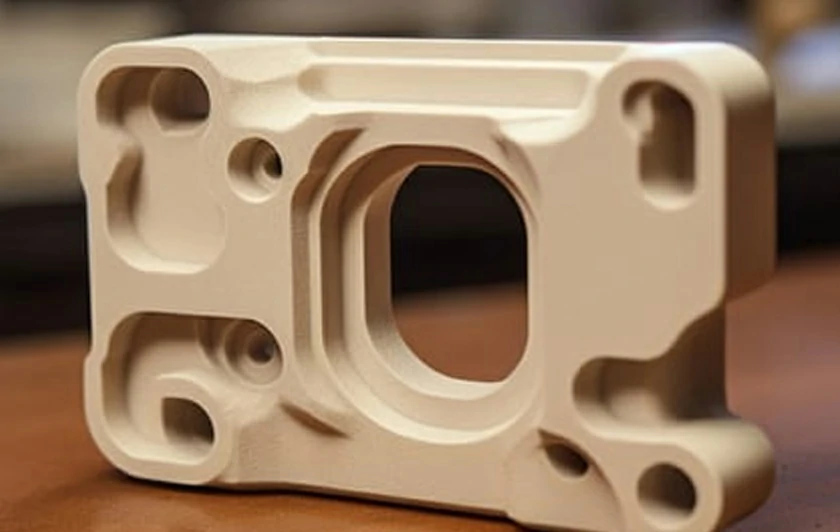

PEEK-1000
PEEK-1000 is made from pure polyether ether ketone resin, offering superior toughness and impact resistance. It is easily sterilized by steam, dry heat, ethanol, or gamma rays and meets EU and FDA standards for food safety. Tensile Strength (MPa): 90-100 Elongation at Break (%): 20-50 Hardness (Rockwell M): 95-105 Heat Deflection Temp (°C): 290-310 Max Service Temp (°C): 260-300
What is PEEK?
PEEK (Polyether Ether Ketone) is a high-performance engineering plastic that is highly suitable for various CNC machining applications. It has excellent heat resistance and can maintain stability at temperatures up to 250°C, making PEEK ideal for manufacturing components used in high-temperature environments. Additionally, PEEK is resistant to a wide range of solvents, acids, and alkalis, and also possesses outstanding mechanical properties, including high strength and rigidity.
PEEK Machining Applications
PEEK is widely used in industries like automotive, medical, and aerospace due to its resistance to wear, heat, and radiation, as well as low flammability and minimal smoke and toxic gas emissions. Here are some common applications of PEEK machining:
- Aerospace Bearings
- Automotive Transmission Components
- Medical Implants
- Surgical Instruments
- Spinal Components
- Electrical Insulation Parts
- Chemical Processing Valves
- Oil and Gas Seals
- High-Performance Bearings
- Bushings
Key Advantages of PEEK Machining
PEEK machining offers several key advantages that make it a preferred choice for demanding applications across various industries. These advantages include:
- High thermal stability, resistant to temperatures up to 250°C.
- Excellent chemical resistance to solvents, acids, and oils.
- Strong, stiff, and tough under high loads.
- Low friction, ideal for bearings and moving parts.
- Biocompatible, safe for medical implants.
- Excellent electrical insulation properties.
- CNC machinable for precise designs.
- Long-term durability, resistant to wear and fatigue.
- Lightweight, suitable for weight-sensitive applications.
- High radiation resistance for harsh environments.
- Non-flammable, safe in high-risk environments.
- UV radiation resistance for outdoor applications.
