PET CNC Machining Services
Get precision CNC machining for custom aluminum parts with our expert services. Factory price, no minimum order, fast turnaround times.
- All uploads are secure and confidential
Certifications
ISO 9001:2015 | ISO 13485：2016 | IATF16949
Ready to Get Started on Your PET CNC machining Quote?
Don’t look anymore! Our professional team is always ready to turn your ideas into reality. With the most advanced CNC machines and years of expertise in PET CNC machining, we can ensure timely delivery and cost-effective solutions for both prototypes and mass production.

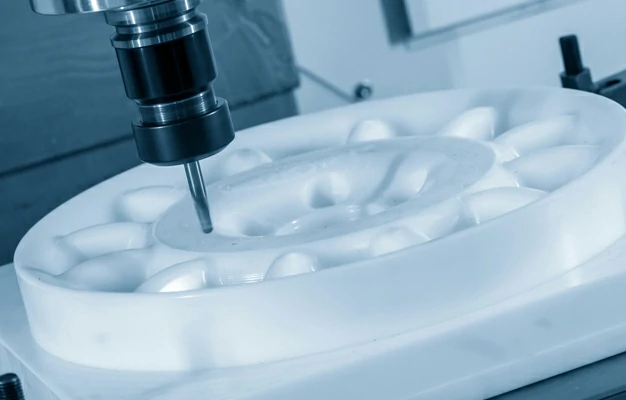

CNC Machining in PET Materials

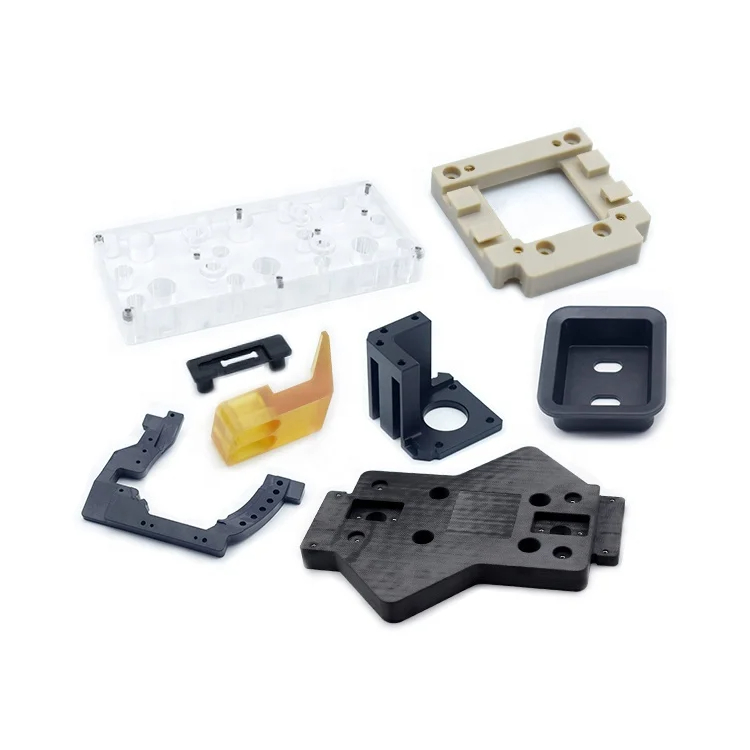

We have powerful PET CNC machining capabilities and can provide 3-axis, 4-axis and 5-axis CNC milling. We are able to produce PET plastic parts with excellent mechanical properties, high precision and good repeatability.
| Standards | Detail |
|---|---|
Price | $ $ $ |
Lead Time | 3 business days |
Wall Thickness | 0.75 mm |
Tolerances | +/- 0.01 mm |
Maximum Part Size | 4000 mm×1500 mm×600 mm |
Available PET at BOONA | PET Black, PET White, PET+GF30 Black, PET+GF30 White |
PET Material Properties
PET is a widely used polymer, and its unique combination of characteristics makes it a popular choice in numerous industries. Understanding the properties of PET materials applied to CNC machining is essential for anyone involved in product design, manufacturing or engineering.
| Mechanical Properties | |
|---|---|
Tensile Strength | 50 – 90 MPa |
Yield Strength | 47 – 90 MPa |
Elongation at Break | 50-300% |
Hardness (Rockwell R) | 110 |
Modulus of Elasticity | 2 – 3 GPa |
Compressive Strength | 90-110 MPa |
Density | 1.38 – 1.40 g /cm³ |
| Thermal Properties | |
|---|---|
Maximum Service Temperature | 60 °C – 115 °C |
Thermal Expansion Coefficent | 40 – 60 10^-6/ºC |
Thermal Conductivity | 0.15 – 0.28 W/(m⋅°C) |
Heat Deflection Temperature | 70 °C – 80 °C |
Melting Point | 250°C – 260°C |
UV Resistance | Poor |
What is PET?
PET, short for Polyethylene Terephthalate, is a polyester thermoplastic. It’s made by condensing ethylene glycol and terephthalic acid, resulting in a linear structure with ester linkages. It has notable physical properties like high transparency, good tensile strength and toughness, low density.
PET Applications
PET has a wide range of applications across various industries.
