Our Quality Control Commitment
Gain a deep understanding of our quality process to ensure that your project proceeds smoothly to the highest standards.
Our Inspection Standards

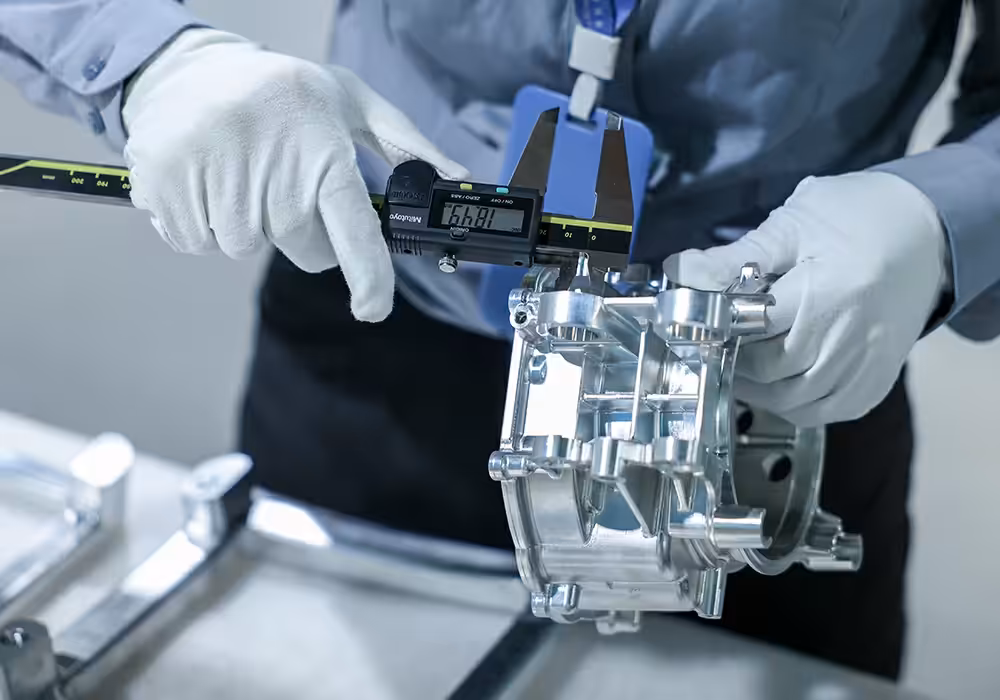

Dimensional inspection standard: For the key dimensions indicated on the drawing, select appropriate measuring instruments to inspect and record the specified dimensional data against the valid version of the drawing. For other dimensions (only for compliance verification), only non-conforming data can be recorded. If no key dimensions are marked, the dimension with a decimal point shall be the key dimension.
The appearance inspection standards for prototype and production parts include color, screen printing, surface treatment, appearance, inserts, packaging, etc., which meet the requirements of the drawings. Defects are generally based on the drawings. If not specified in the drawings, refer to the following requirements.
| A-Section | B-Section | C-Section | ||
|---|---|---|---|---|
| Colour | Discoloration | The color meets the requirements of the paper and is not allowed | The color meets the requirements of the drawing, and slight discoloration within a visual inspection range of 60cm is allowed, and it is not visible beyond a range of 80cm | The color meets the requirements of the drawing, and abnormal colors are allowed |
| Watermark/Yellow spot | No visible watermarks or yellow labels allowed | Visually indistinct is acceptable, and it is allowed to visually inspect within 60cm of the product, with a slight distance exceeding 80cm and not visible | The color meets the requirements of the drawing, and it is allowed to have, but cannot exceed 10 places, and the length cannot exceed 1/3 of the total length | |
| Surface Damage | Inductive scratch | One strip of 40mm length is allowed within 300mm length (the depth does not exceed 0.2mm) | Two strips of 40mm length are allowed within the length of 300mm (the depth does not exceed 0.2mm) | Three strips of 40mm length are allowed within the length of 300mm (the depth does not exceed 0.5mm) |
| Non-inductive scratch | A strip of 5mm×0.2mm is allowed within 600mm in length | Four strips of 50mm×0.4mm length are allowed within 300mm in length. | Three strips of 50mm×0.1mm length are allowed within 300mm in length. | |
| Concave and convex marks/pits/missing corners | The diameter is 1mm and 600mm is allowed to have one place (height or depth is less than 0.2mm), and the silk screen is not allowed to have | The diameter is 1mm and 1 place is allowed in 300mm (height or depth is less than 0.2mm) | The diameter is 1mm and 3 places is allowed in 300mm | |
| Process Defect | Trachoma/bright spots/dark spots | One dot of 0.10mm×0.10mm is allowed (within the range of 300×300mm), and no one is allowed in the silk screen area. | Two dots of 0.30mm×0.30mm are allowed, more than 50mm apart (within the range of 300×300mm) | Two dots of 0.30mm×0.30mm are allowed, more than 50mm apart (within the range of 600×600mm) |

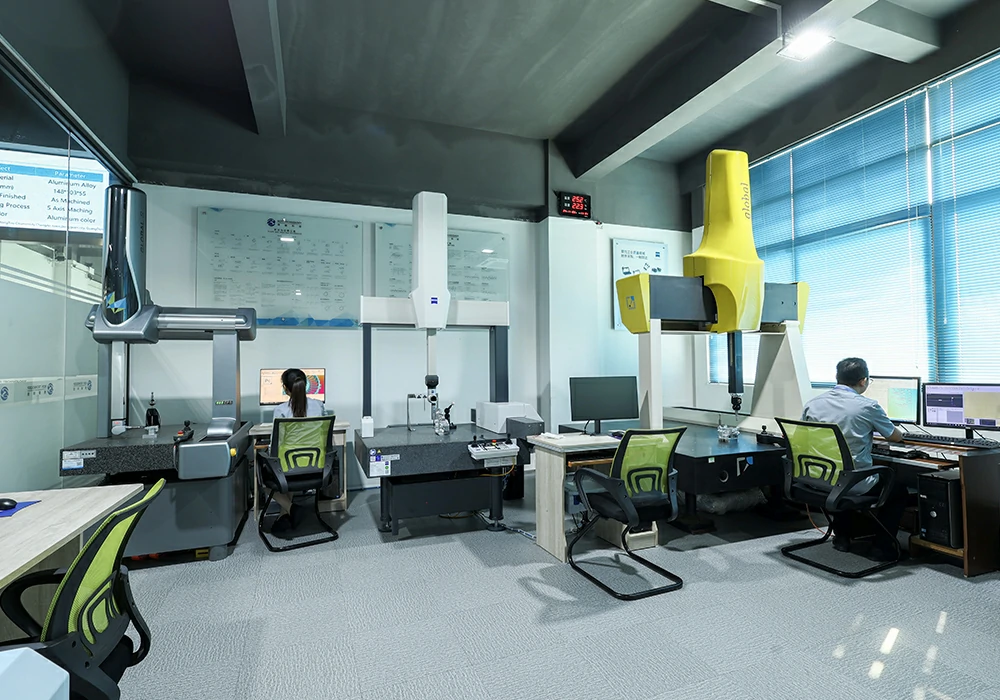

Most Advanced Inspection Equipment
These devices are an important support of our strict quality control protocol, ensuring that the parts meet the highest standards.

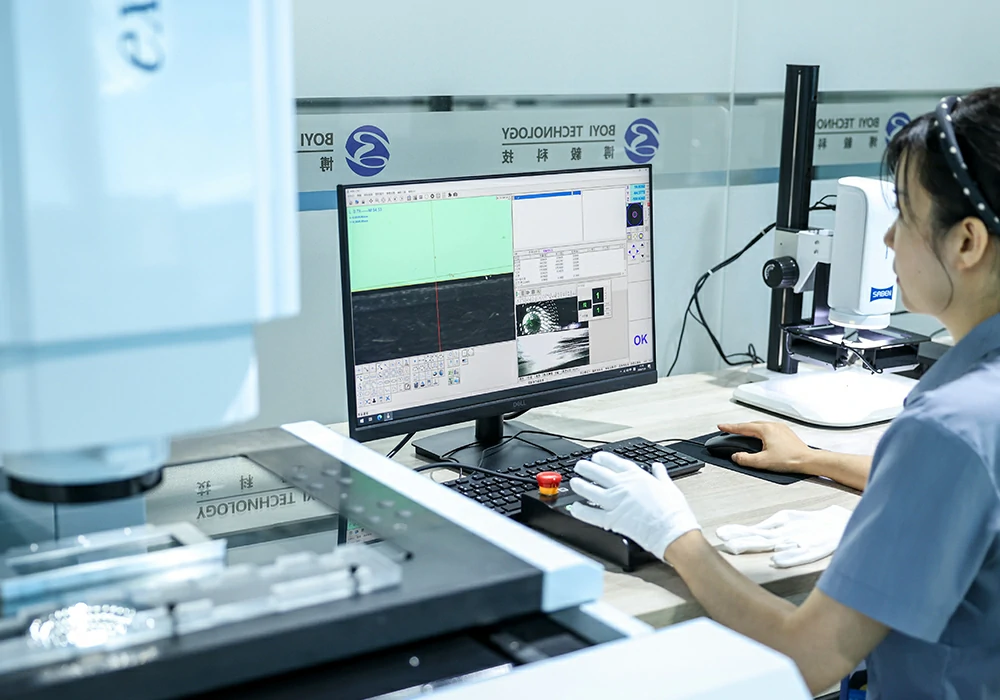

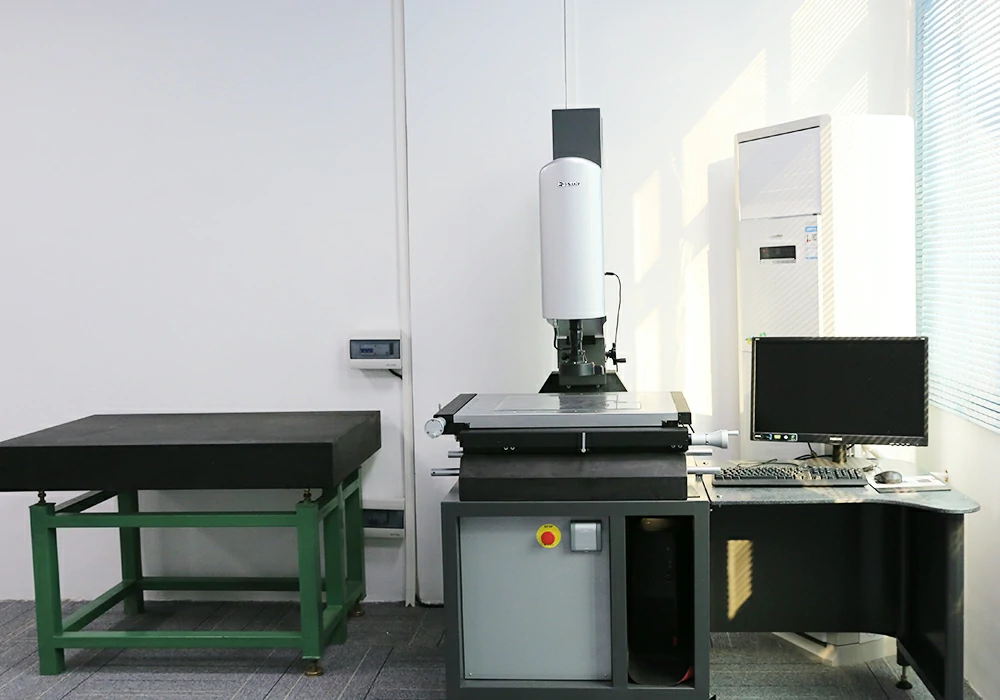

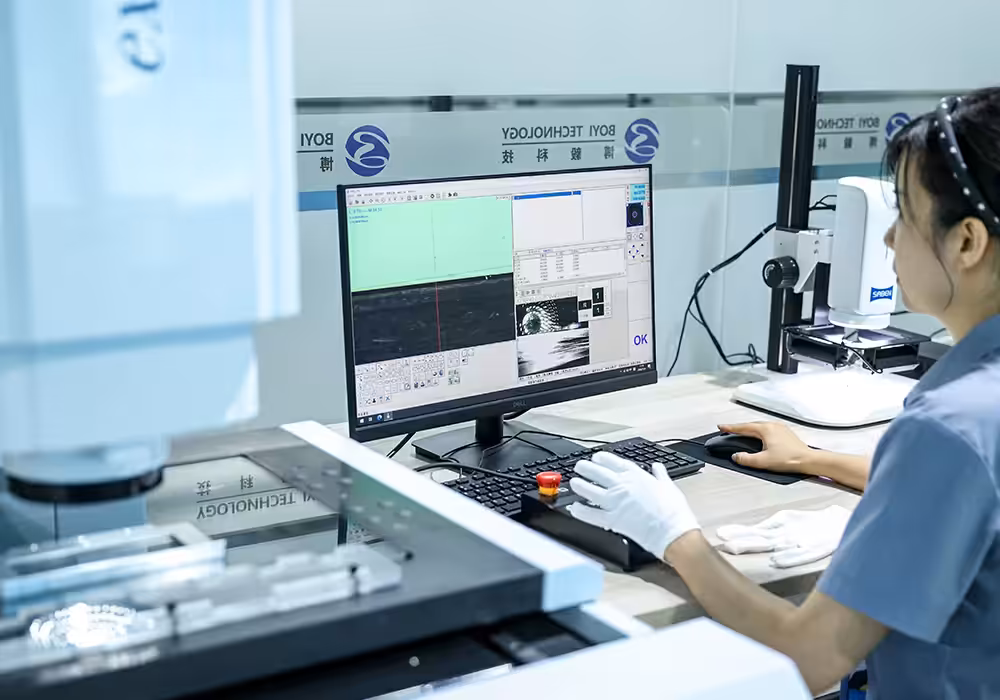

Profile Projects

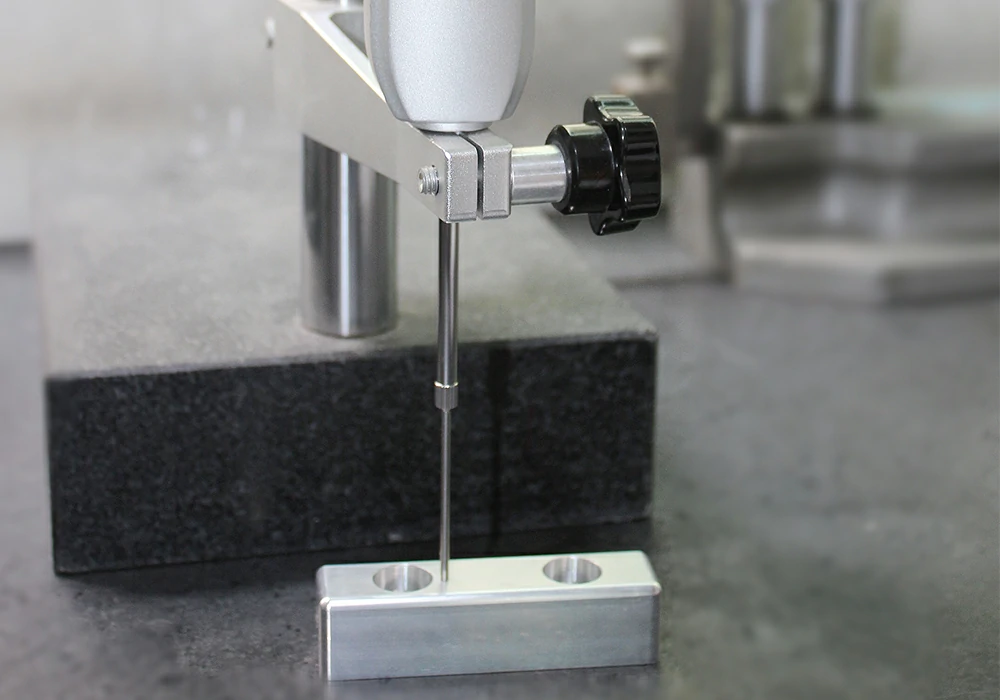

Height Gages

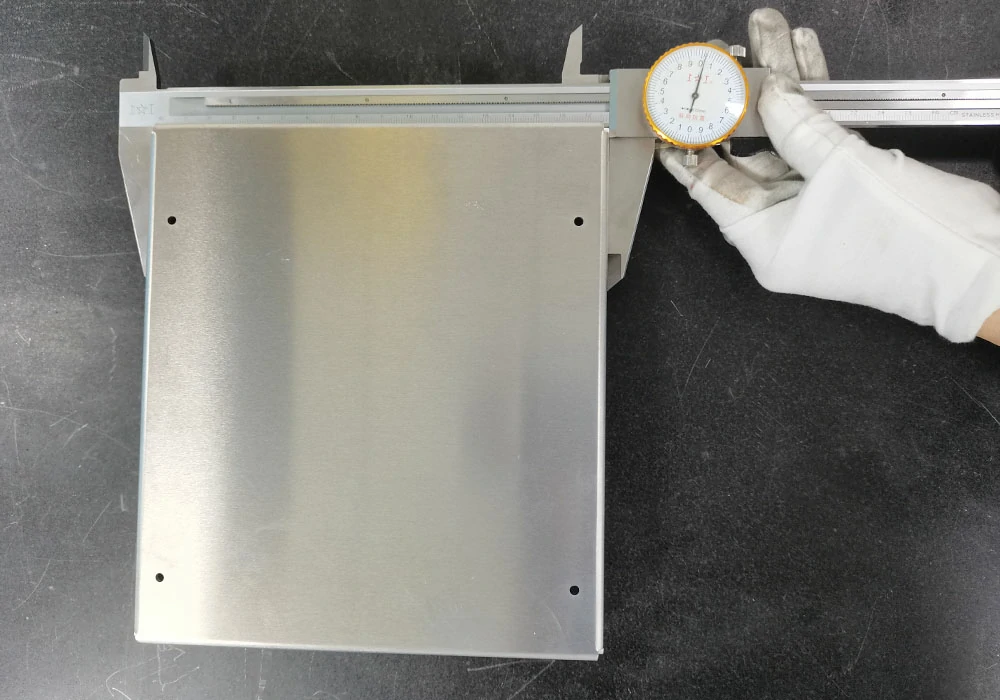

Vernier Calipers

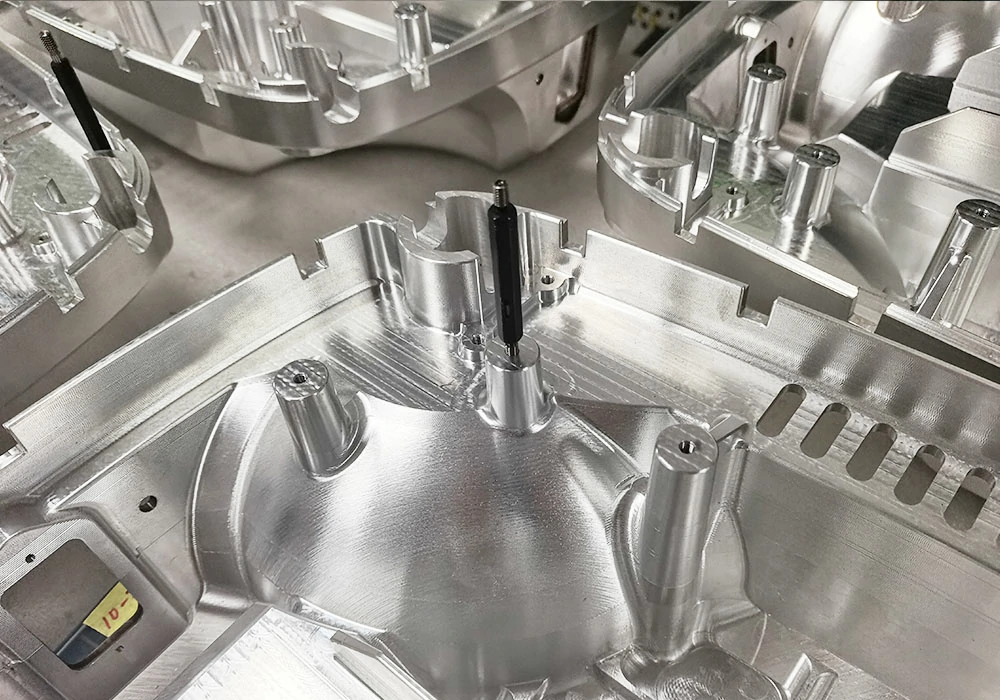

Thread Gages

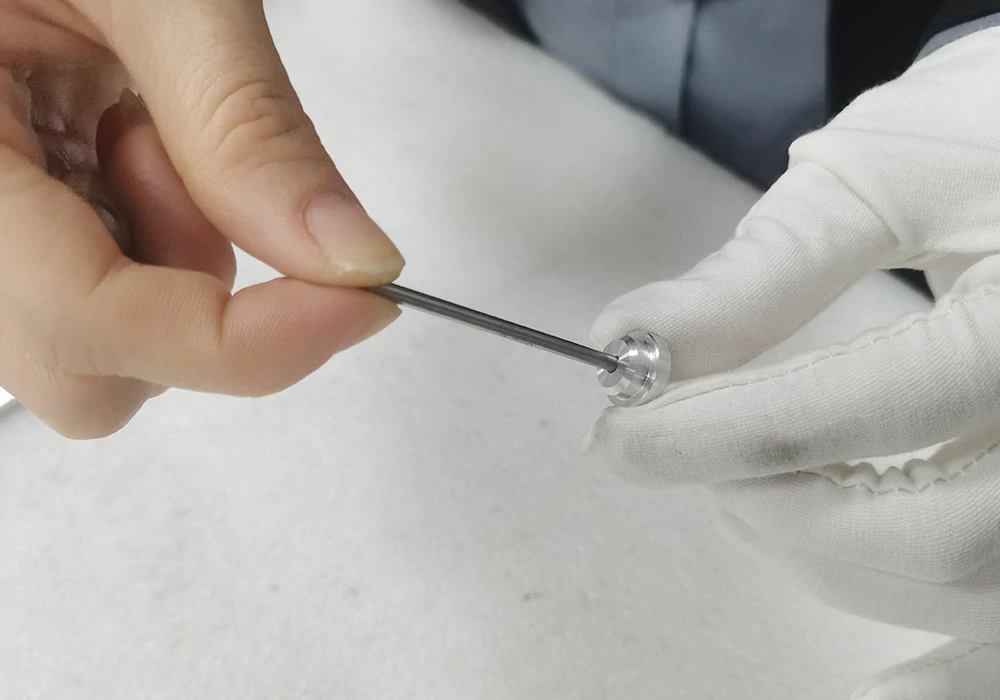

Pin Gages

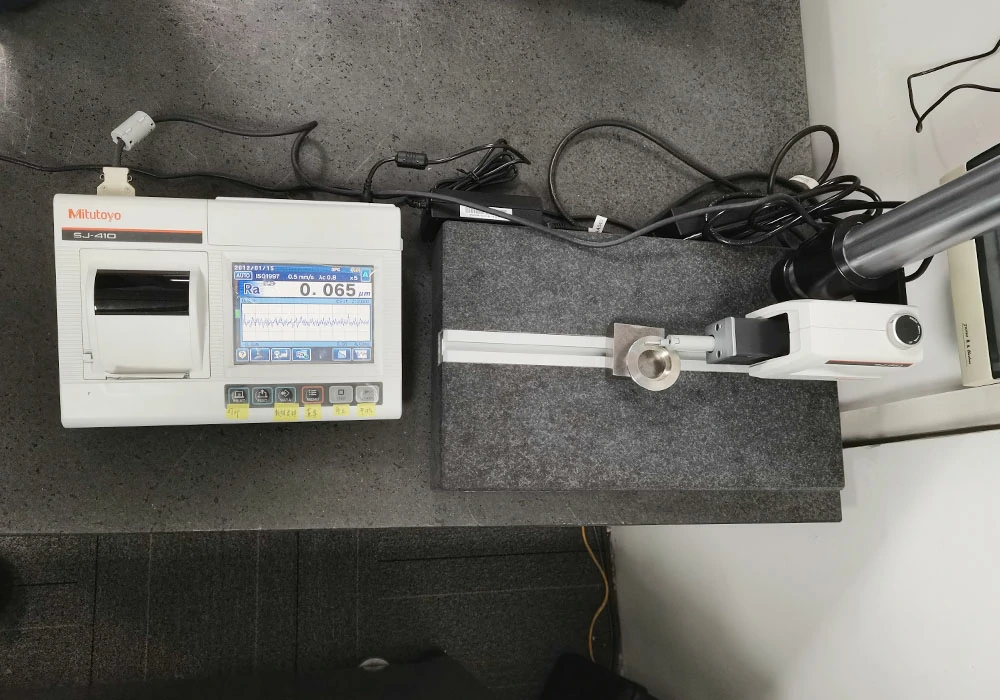

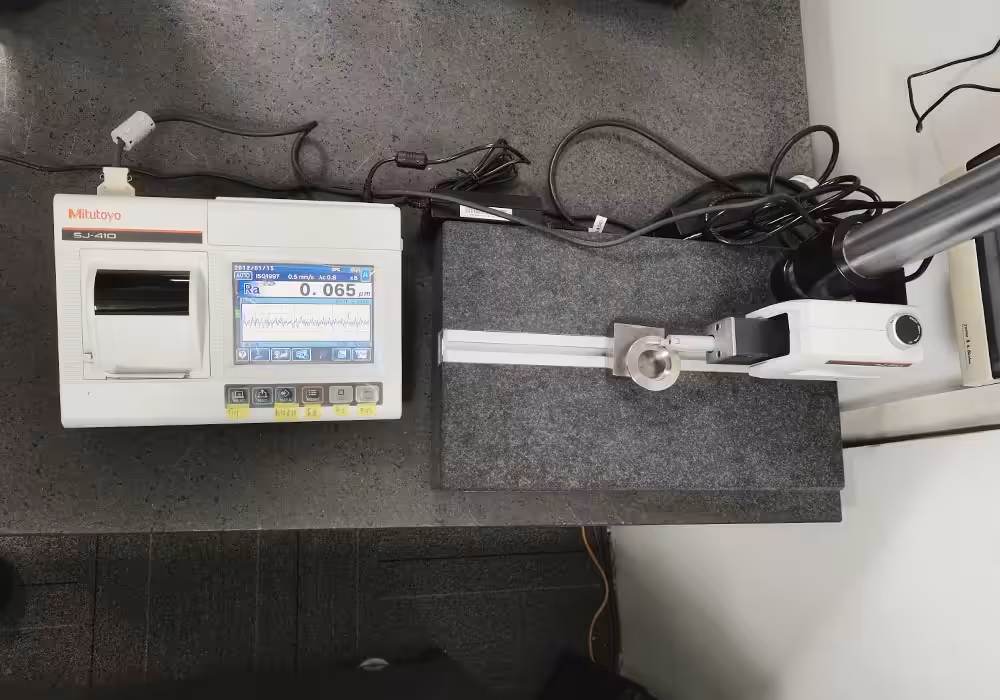

Profilometer

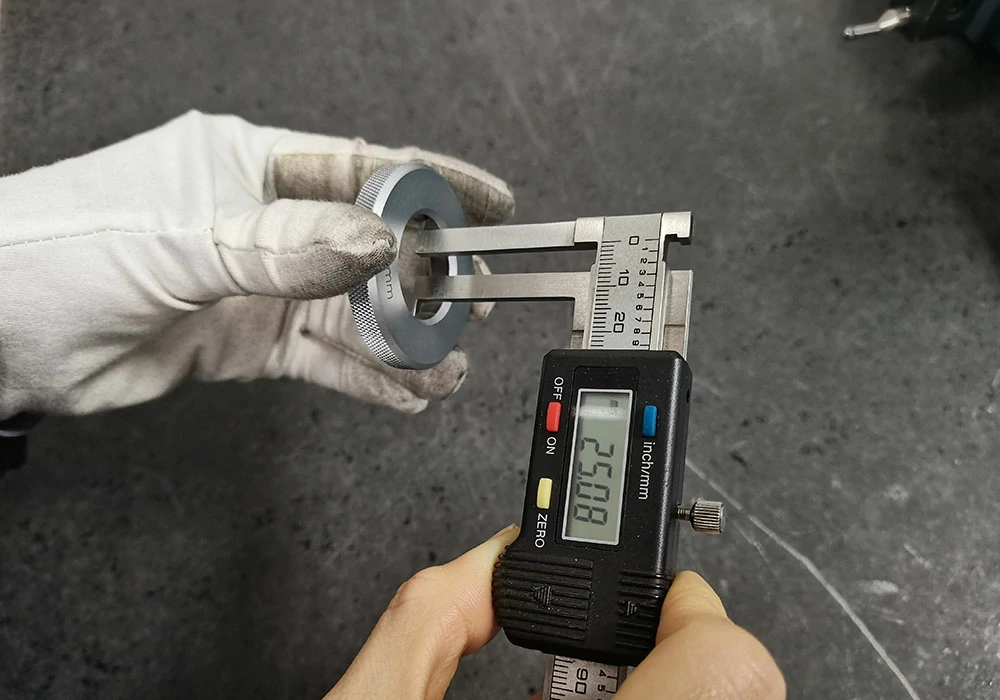

Internal Groove Digital Caliper

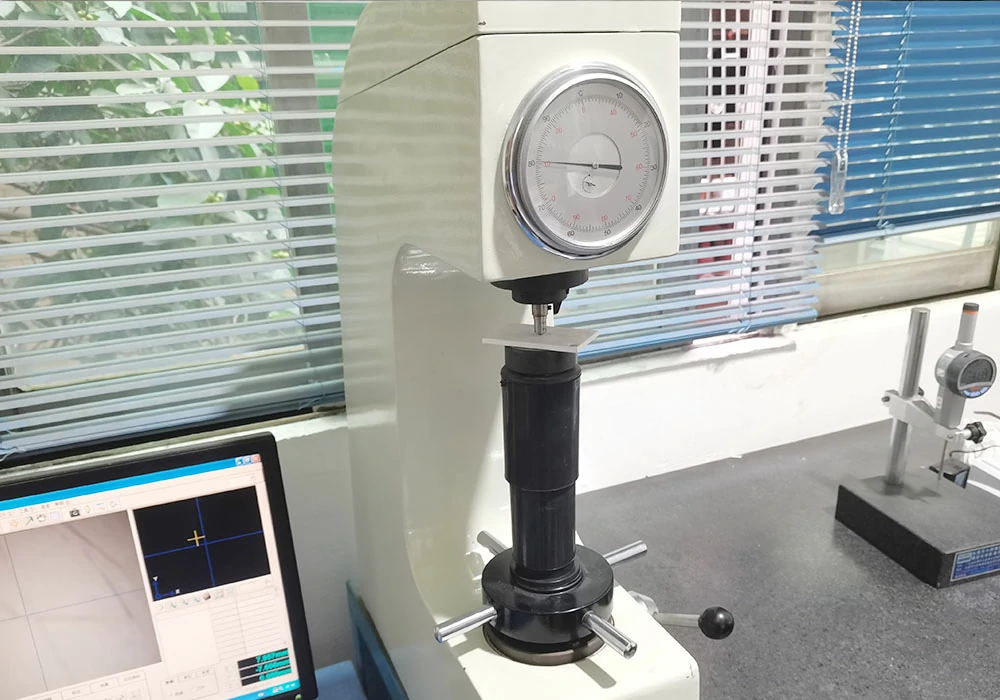

Hardness Tester

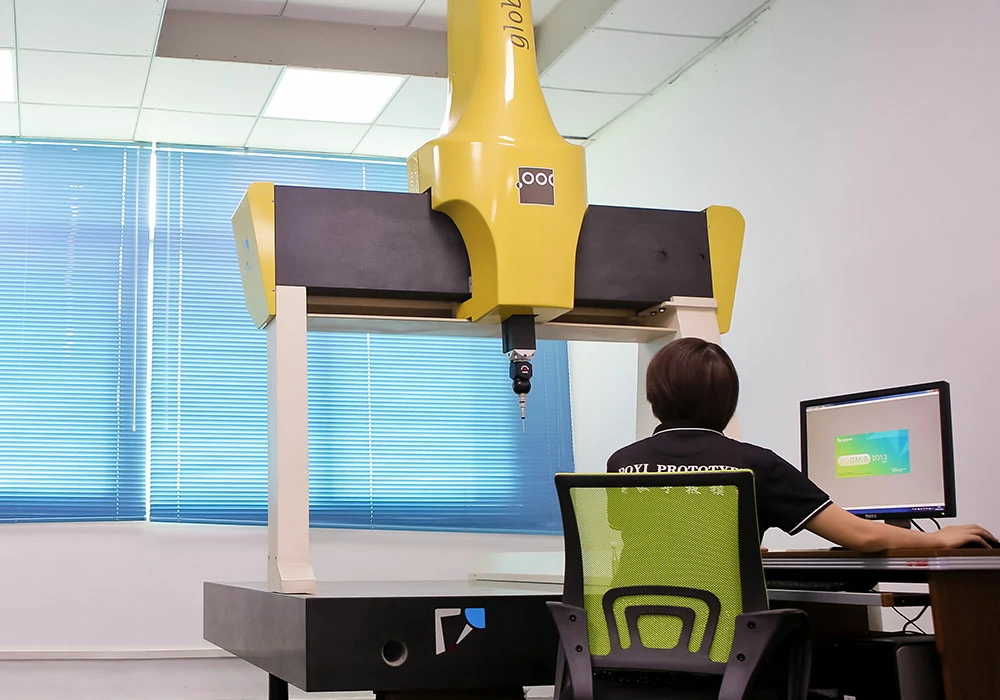

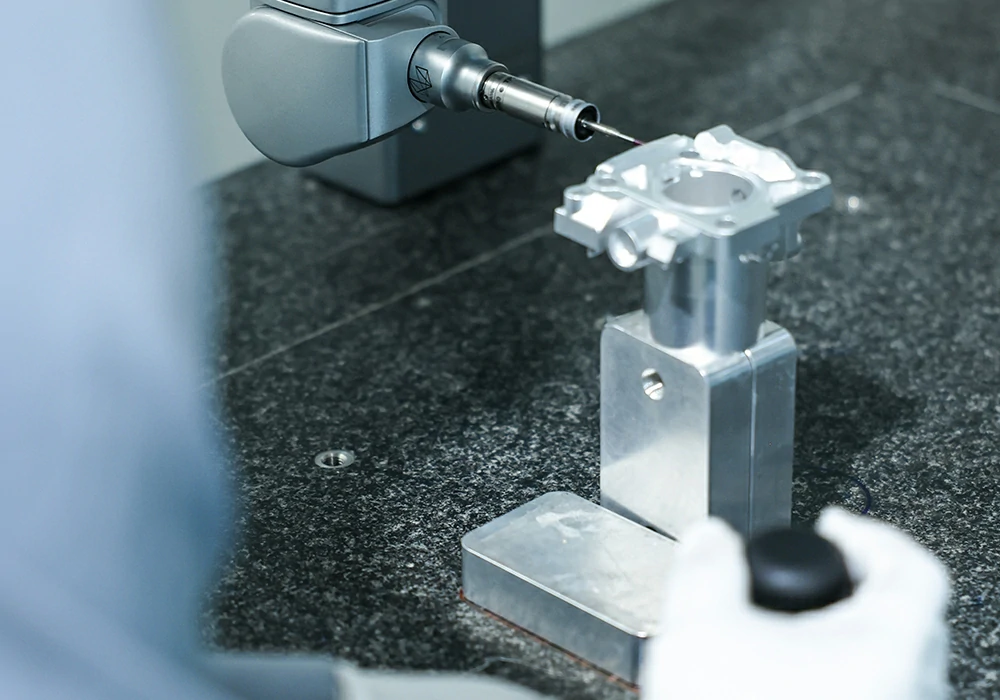

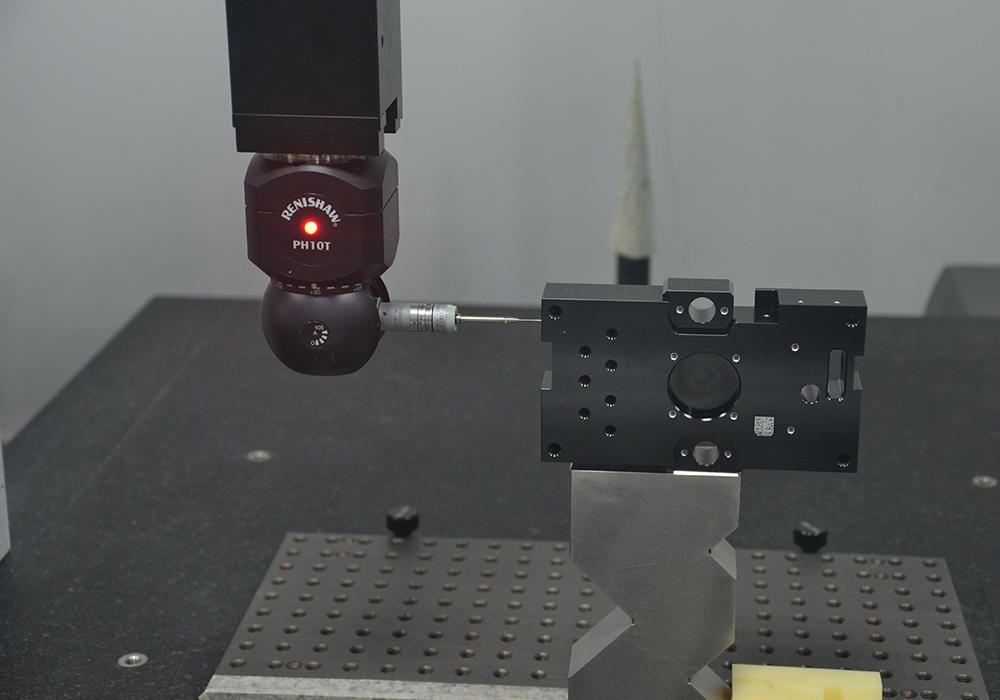

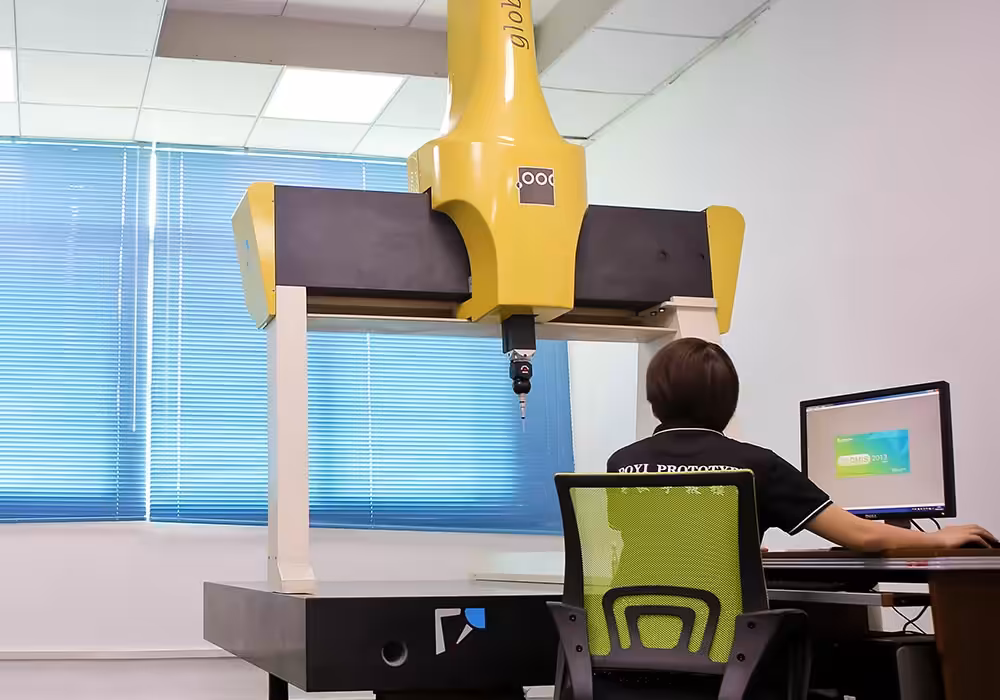

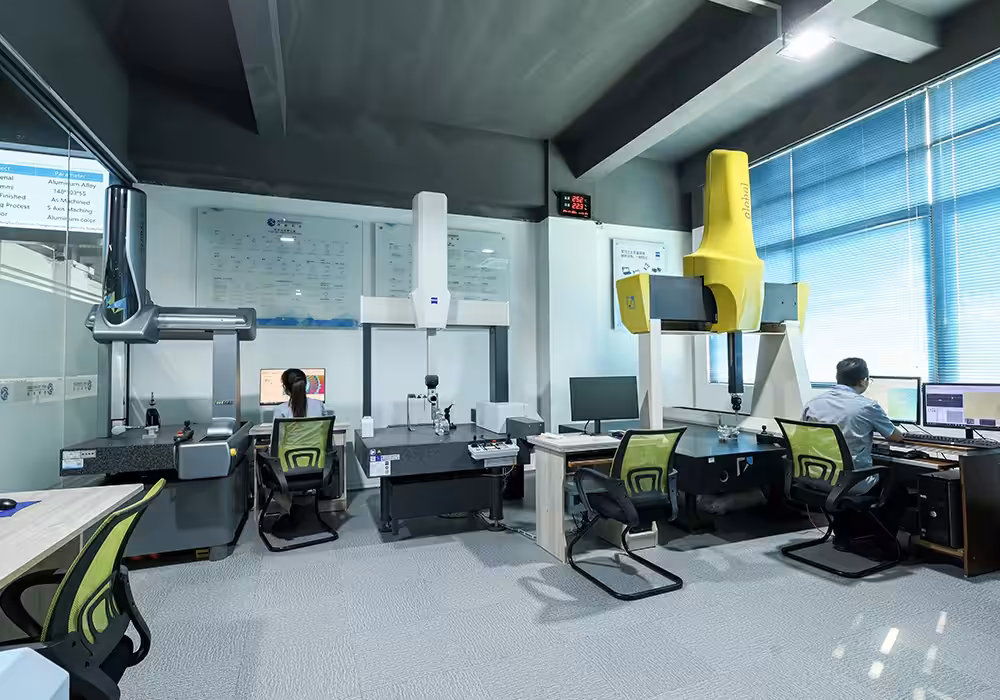

CMM

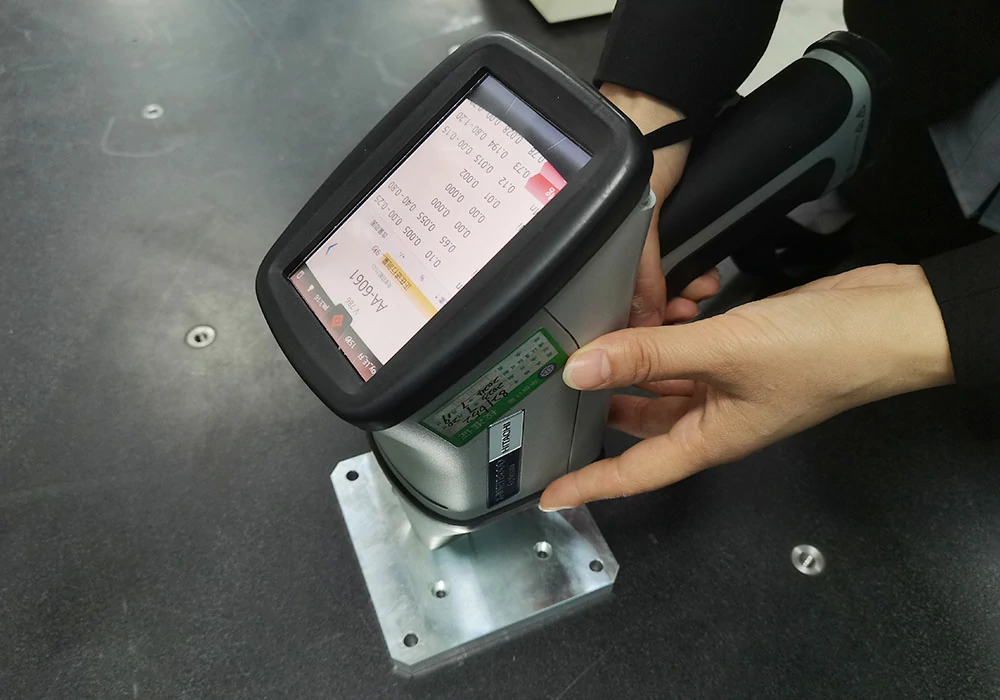

Spectral Analyzer
Detailed Inspection Report of Parts
Present the quality status of each parts providing you with clear and reliable reference basis.
- Dimensional Inspection
- CMM Inspection
- Material Certificate
- Material Test Report
- Appearance & Composition Inspection
- Performance Inspection
- First Article Inspection
- RoHS
Watch the Video to See How BOONA Delivers Quality in Every Detail!
In this video, learn how BOYI ensures its quality commitment is reflected in every step of the process. From stringent inspections to continuous improvements, we guarantee that each part meets the highest standards.
ISO Certifications
With the rigorously reviewed ISO 9001 certified quality management system, we guarantee that your part manufacturing always complies with industry-specific certifications. Our ISO certification covers standards such as ISO 9001 and ISO 13485, providing reliable assurance for your product manufacturing.
- Download Our ISO Certificate
