Rapid Prototyping Services
Provide rapid prototyping services using the most advanced manufacturing processes. Take your ideas from design to market in just a few days,
- All uploads are secure and confidential
Certifications
ISO 9001:2015 | ISO 13485：2016 | IATF16949
What is Rapid Prototyping?
Rapid prototyping is the technical process of quickly transforming product concepts into physical models. Its main purpose is to rapidly manufacture parts for actual manual inspection and review. This early model is called a “prototype”, which is continuously improved and iterated until the final correct version is obtained.
All rapid prototyping begins with digital models, and 3D printing is usually the preferred method for rapid prototyping because 3D printed prototypes are affordable, typically within a few tens of dollars, and can be obtained within 3 days. Other common rapid prototyping processes include CNC machining, vacuum casting, and sheet metal fabrication.

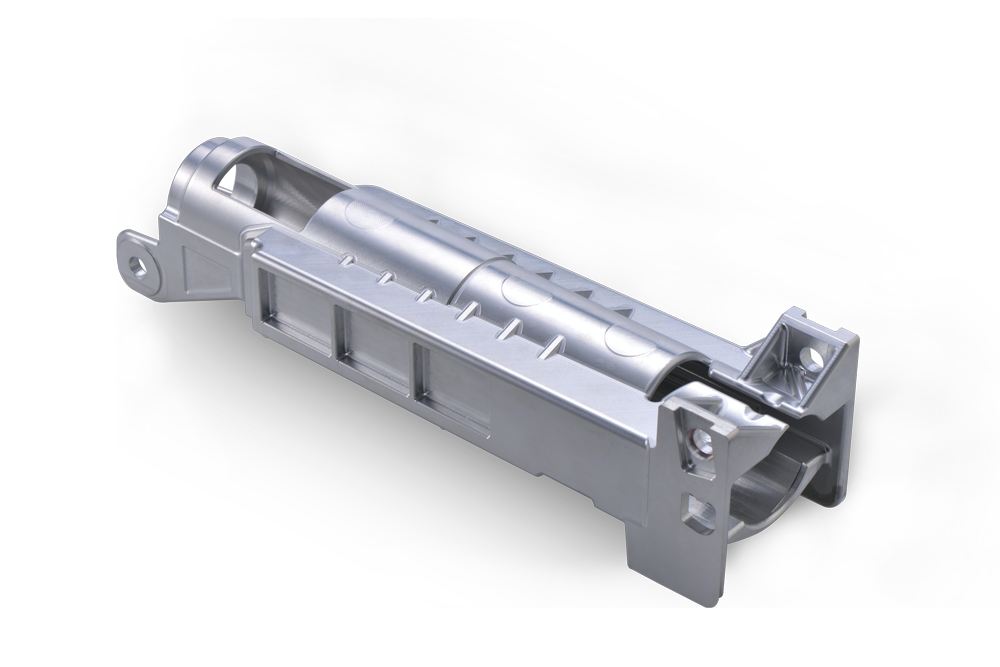

Rapid CNC Machining Prototyping
Boona is able to quickly produce CNC machining prototypes for plastic or metal parts. Many CNC machined parts can be manufactured and shipped within 3 days. The CNC expedited option was provided in the quotation, and Boona has cost-effectiveness and market pricing, allowing engineers to order multiple prototypes at once for quick product evaluation.
Standard Capabilities | Tolerance |
|---|---|
Linear dimension | ±0.025 mm(±0.001 in.) |
Hole diameters (Not reamed) | ±0.02 mm(±0.0008 in.) |
Tolerances | ±0.01 mm(±0.0004 in.) |
Shaft diameters | ±0.025 mm(±0.001 in.) |
Rapid Vacuum Casting Prototyping
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Standard Capabilities | Tolerance |
|---|---|
Minimum wall thickness | ±1 mm（±0.04 in.） |
Accuracy | ±1 mm（±0.04 in.） |
Maximum build size | ±0.025 mm（±0.001 in.） |
Standard lead time | 3 business days |
Rapid 3D Printing Prototyping
3D printing is the most common rapid prototyping process. Boyi utilizes the most advanced 3D printing technology to meet your fast 3D printing needs, such as SLA, SLS, SLM, and other technologies. 3D printed parts can be manufactured and transported in just 3 days for a few dollars.
Standard Capabilities | Tolerance |
|---|---|
Dimension tolerance | ±0.2 mm（±0.007 in.） |
Minimum wall thickness | 0.6 mm（0.023 in.） |
Layer height | 50 – 300 μm |
Rapid Sheet Metal Prototyping
Rapid sheet metal prototypes are usually suitable for flat parts such as brackets and shells, including very large metal parts. At Boyi, these parts can usually be completed in 3 days or less.
Standard Capabilities | Tolerance |
|---|---|
Cutting feature | ±0.2 mm（±0.007 in.） |
Bend to edge | ±0.254 mm（±0.01 in.） |
Bend angle | ±1° |
Tolerances | ±0.05 mm（±0.002 in.） |
Materials for Rapid Prototyping
Boona offers quotes for over 100 types of metals and plastics to meet your prototyping needs. Including but not limited to the following:
- Brass
- Stainless steel
- Titanium
- Copper
- Steel
- Magnesium
- Aluminum
- POM
- PS
- HDPE
- PE
- PEEK
- PP
- PMMA
- Nylon (PA)
- ABS
- We provide a quotation of 100+materials so that you can better compare and choose suitable materials.
